Oshima's Ball Mill - 10,000 manufactures of history and reliability

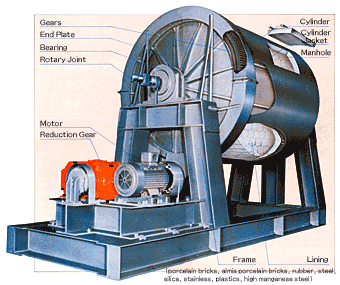

Oshima's Ball Mill is...
Together with the history of Oshima Iron Work Co., Ltd., OSHIMA's Ball Mills boast the unbroken tradition of over 60 years. Oshima have constructed mote than 10,000 business productions on Ball Mill, from the smallest ones for testing purpose to the Japan's biggest. Oshima make every effort to keep the reputation of the very best in Japan in regards of designing, examining the materials, and constructing the Ball Mills. Oshima also provide various types and sizes of Ball Mills according to the user's requirement. The linings of porcelain bricks, silica bricks, white pig-iron, high manganese cast-steel and rubber lining are to be equipped with according to the kind of ores to crush.

Oshima's Ball Mills have gained the absolute trust from the industry, and are broadly used in oversea countries, not to mention in Japanese domestic companies.

Feature

*The construction of each section of machine is strong and simple in handling

*The durability of abrasion section is better, the parts-change is easier, thus the running cost is less

*Labor saving can be made by integrating various automatic machines

*According to the perfect machinery processing of the drum, the most important lead of rotation like end plate and gear tooth etc. is reliable and durable.

Usage

China Wares, Glaze, Dyes, Pigment, Plastics, Bakelite, Graphite, Enamel, Ceramics Materials, Ferrite, Food Product, etc.

Grinding Medium

Porcelain Ball, Silica Stone, Steel Ball, High Alumina Porcelain Ball, Stainless Steel Ball, Rubber Ball, Polyurethane Ball, Zirconia ball, and etc.

Lining

Silica Stone, Porcelain Bricks, White Pig Iron, Cast-Steel, Rubber, High Manganese Cast-Steel, High Alumina Porcelain Ball, Stainless, Polyurethane

Method

Variation

BM50 - BM8000
